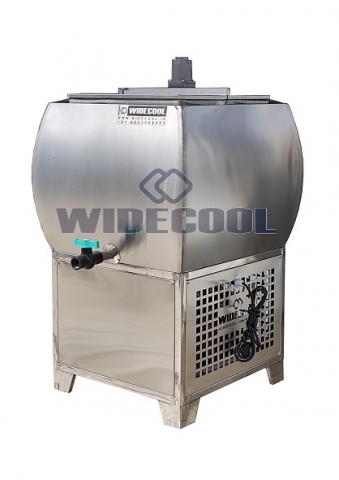

Bulk Milk Cooler


Send Inquiry
Discription:
APPLICATIONS
The most important part of milk collecting center is the bulk milk chiller (BMC). When the milk is extracted it is at around 37C. At atmospheric temperature the bacterial growth of milk affect the quality. So to maintain the quality of milk it is necessary to store it at 4C. Milk coolers are design to maintain the temperature of milk at desired point for better handling and storage.
  • Dairies
  • Ice Cream Manufactures
  • Milk Outlets
  • Provision Stores
  • Tea Depot



Description

  Dimension

  (LBH inch)

 Volume

(ltr)

Power

(KW)

Power supply Pulldown time refrigerant
RBMC100  26x26x42  130 0.8 1 Ph 5 Hrs R22 / R134a
RBMC250  31x37x60  265 1.2 1 Ph/3 Ph 5 Hrs R22 / R134a
RBMC500  52x42x60  530 2.7 1 Ph/3 Ph 5 Hrs R22
RBMC1000  97x42x60  1040 4.5 1 or 3 PH 5 Hrs R22
RBMC1500  109x58x36  1500 5.9 3 Ph 5 hrs R22





















Tank—

· Vertical Rectangular tank with opening cover Consisting of:

· Inner Tank, Stainless Steel 304,

· Very efficient full flow argon welded evaporator

· Outer tank, stainless steel 304,

· Insulation with high density non CFC polyurethane foam, 75 mm thickness,

· Cover stainless steel AISI 304, with filling hole and gas spring for easy opening,

· Four adjustable legs (Optional)

· Stainless Steel Butterfly Outlet Milk Filling Valve

· Milk Level Indicator scale



Agitation and Homogenization

· Low Speed Noiseless Gear Motor (30-35 Rpm)

· Automatic safety stops of agitator at door Opening.

· Automatic programmed Continuous agitation

· Homonization of milk fat in 2 minutes according to ISO 5708 Standard.



Cooling Equipment

· Separate hermetic type cooling unit with Emerson Copland compressor.

· R 134a/ R407 Green Refrigerant.



Electrical equipments

· Automatic box fastened on the cover opening

· The control interface (Stop, Refrigeration start, continuous agitation start)(Optional)

· The regulation and display of milk temperature,

· The management and control of cooling, agitation and alarms function
